Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPEAL-8732 |
Minimum Order Quantity: | 100 Meters |
Price: | $2.38--$4/ meter |
Packaging Details: | One roll 50m in fiberglass fabric packing |
Delivery Time: | 2 weeks after receiving payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 45,000 Square Meters Per Day |
Base: | Fiber Glass Cloth | Surface: | Aluminium Foil |
---|---|---|---|
Total Weight: | 430g/m2 | Thickness: | 0.43mm |
Length: | 50 Meters One Roll | Temperature: | <300℃ |
High Light: | silver plated fabric,carbon fiber fabric |
Silver Coated Fabric 430G 0.43MM Twill Aluminium Foil Fiberglass Pipe Insulation
Heat reflective material aluminium foil fiber glass fabric is made of 430gsm 3x1 cross twill weave fiberglass fabric laminated with a layer of aluminium foil by high temperature adhesive. Yarn count per cm of this silver coated fabric is warp/weft 18/13. Fiberglass cloth is able to withstand continuous heat below 550℃. Due to the temperature of adhesive, aluminized fabric is able to be used below 300℃.
Aluminium coated fabric is oil&water resistant, chemical resistant, abrasion resistant and heat reflective. This cloth is widely used in thermal insulation, such as fire blanket, pipe insulation, removable heat resistant jacket and fabric expansion joint.
Data Sheet
Material | Aluminium Foil Fiberglass Fabric | ||
Weave | Satin, 3x1 Twill | ||
Yarn Tex | Warp | EC9 33 2X2 | |
Weft | EC9 33 2X2 | ||
Area Weight | 430 gsm | ||
Thickness | 0.43 mm | ||
Aluminium Foil Thick | 7micron/18micron/25micron | ||
Tensile Strength |
Warp | 6000 N/5cm | |
Weft | 4500 N/5cm | ||
Width | 100CM | ||
Work Temperature |
Fibreglass Cloth: 550℃ Adhersive: 300℃ |
Features
Application

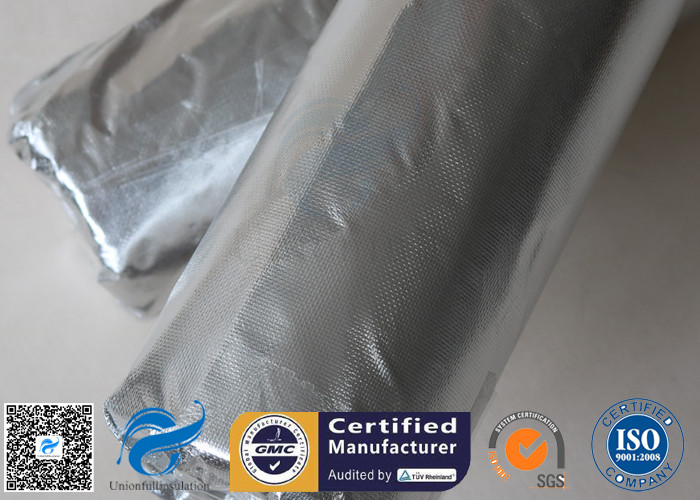

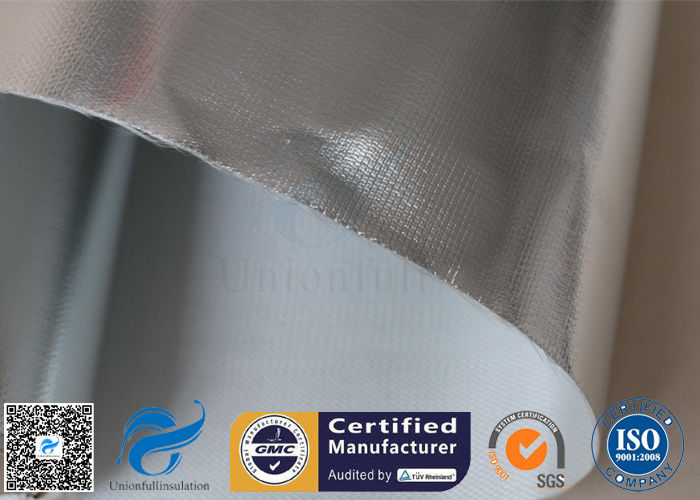

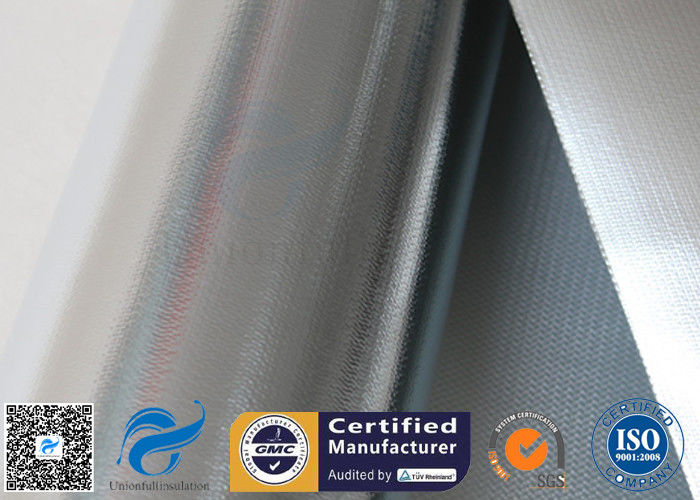

Picture:
