Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS |
Model Number: | JT8220SP-20-100 |
Minimum Order Quantity: | 500 Meters |
Price: | US$5.45-6.55/Square Meter |
Packaging Details: | 100m one roll in poly bag. |
Delivery Time: | 15 Working Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000 Square Meters Per Day |
Base Cloth: | 7119 Fiberglass Fabric | Total Weight: | 220g/m2 |
---|---|---|---|
Thickness: | 0.2mm | Weave: | 12HS |
Type: | E-glass | Width: | 100cm |
High Light: | silver plated fabric,silver carbon fiber |

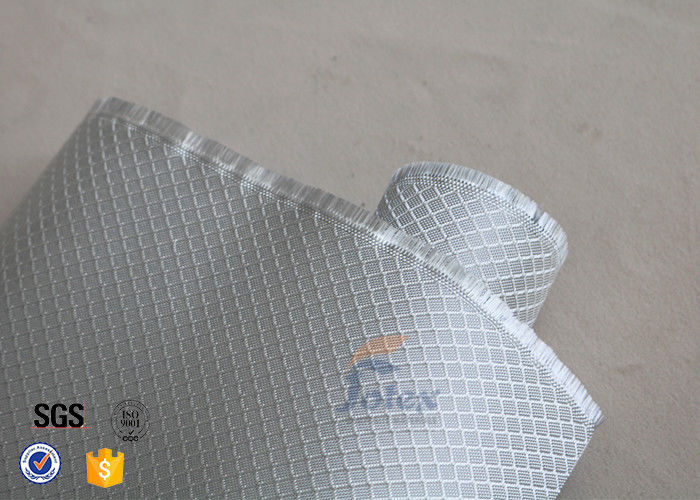

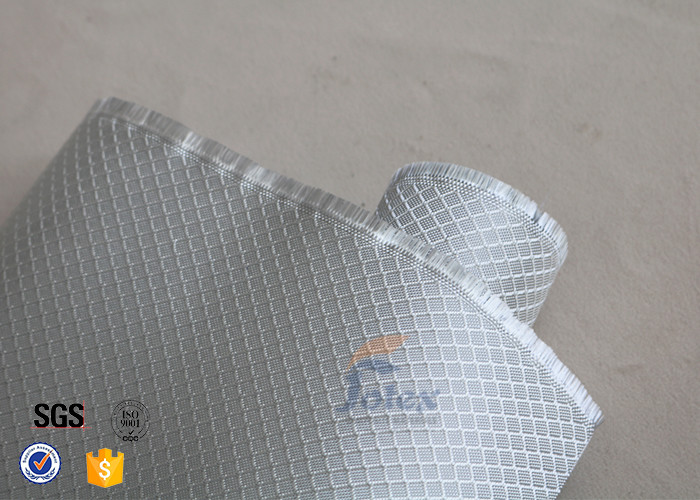

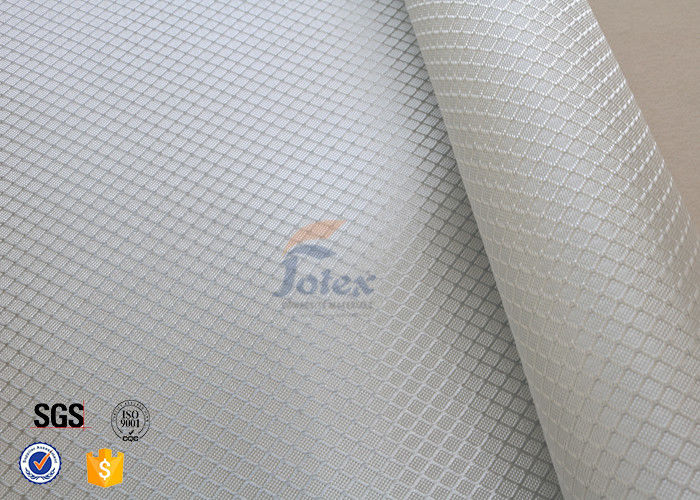

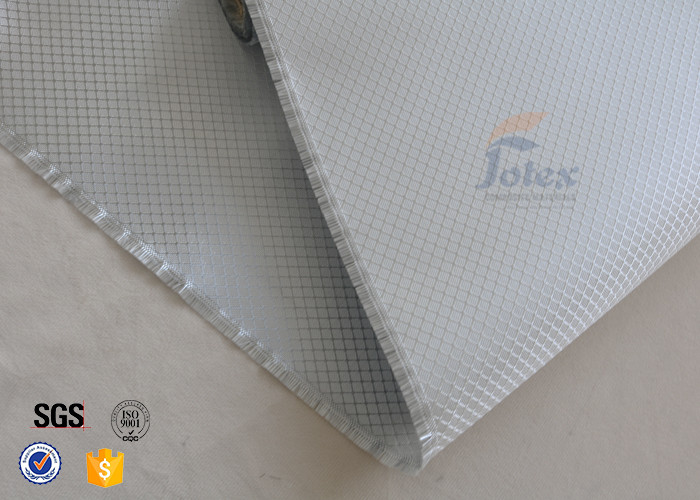

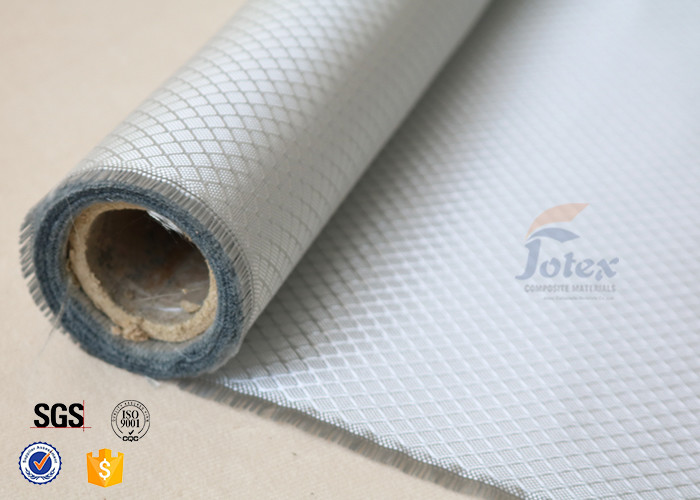

220gsm Aluminized Coated Fiberglass Cloth Silver Coated Fiberglass Fabric
This aluminized/silver plated/silver coated fiberglass fabric is made from e-glass fiber glass and then it has post-treatment of silver plated. The total weight of the silver plated fabric is 220gsm. Thickness is 0.2mm. The basic fabric 7719 is fireproof, high strength and chemical resistant. After the surface post treatment, the plated fabric keeps the good chemical and physical properties of fiber glass, meanwhile it will has the new features of silver coating too. The silver checked surface of this fabric is bright and it is suitable for surface decoration.
The basic cloth 7719 fiber glass can be used from -70℃ to 260℃. However, the silver coating can withstand below 500°F/260℃. Due to its high temperature resistance and silver checked surface, this fabric is widely used for thermal insulation and surface decoration.
Specification Of JT8220SP-20-100:
Product Model | JT8220SP-20-100 | |
Material | Aluminized/Silver Plated Fiberglass Fabric | |
Weave | Satin Weave | |
Yarn Tex | Warp | 68 tex 1/0 |
Weft | 68 tex 1/0 | |
Ends Warp/Weft(cm) | 17/15 | |
Total Weight | 220g/m2 | |
Thickness | 0.2mm | |
Width | 100cm | |
Service Temperature |
Fibre Glass Cloth: 550℃ Silver Plated Coating: 260℃ |
Features:
Application
