Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | JT8600AS-S100-94 |
Minimum Order Quantity: | 300 METERS |
Price: | $5.25--7.8/M2 |
Packaging Details: | 50 Meters per Roll |
Delivery Time: | 21 Working Days |
Payment Terms: | T/T, L/C, Western Union, |
Supply Ability: | 10000 square meters per day |
Coating: | Aluminum Foil | Structure: | Laminated |
---|---|---|---|
Packaging Details: | Aluminum Coated Silica Fabric Packed With Plastic Bag And Carton Box | Usage: | Heat Shield |
Material: | Aluminum Foil + 96% Silica Fabric | Working Temperature: | 500 |
High Light: | silica fiberglass,High Silica Glass Fiber |
Unionfull Group Ltd. has acquired a commendable position in the industry for the exporting, distributing, supplying and trading a wide assortment of Silica Cloth With Aluminum Foil in China.

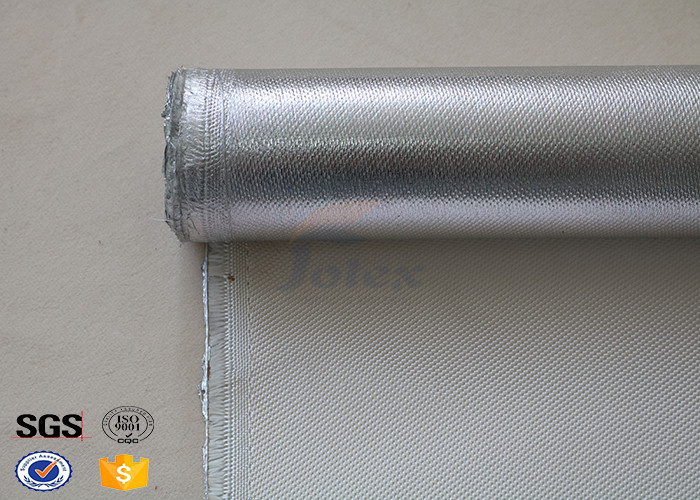

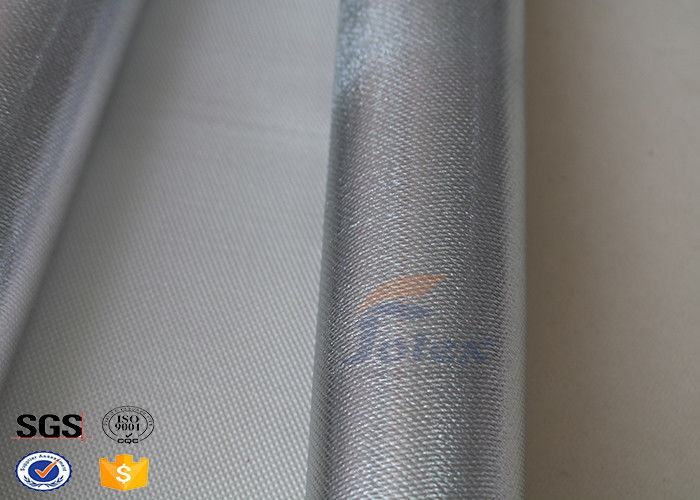

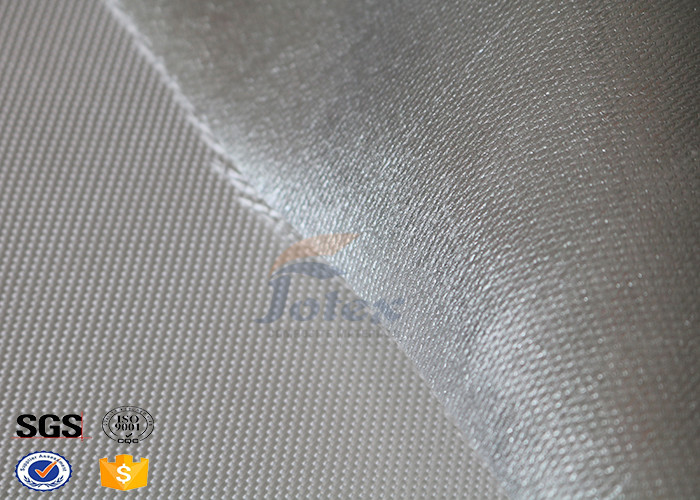

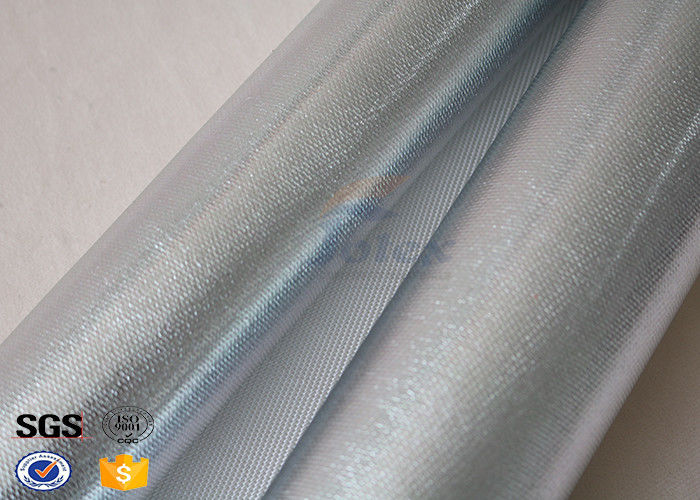

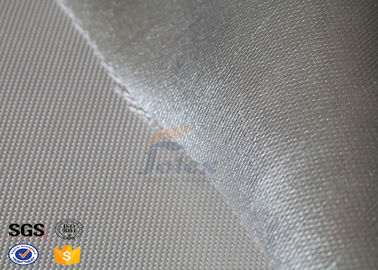

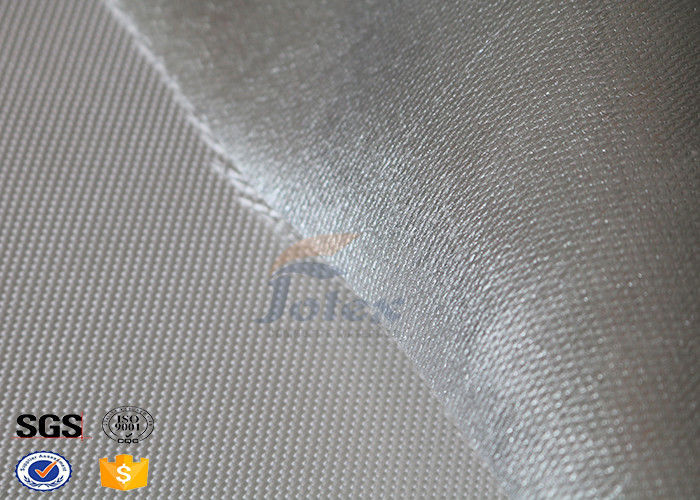

Silica Cloth With Aluminum Foil Over material it has aluminum foil. Due to special chemical and thermal treatment an almost pure silicate fiber is achieved, the SiO2-share is abaut 94-98%. Resistant high temperature 1000 ℃.
Item No. |
JT8600AS-S100-94 |
|
THREAD COUNT |
WARP |
18 per cm |
WEFT |
13 per cm |
|
WIEIGHT |
680 g/m2 |
|
THICKNESS |
0.43 mm |
|
COATING |
Aluminum foil/Metalized film |
|
COATING THICKNESS |
7micron/18micron/25micron |
|
TENSILE |
WARP |
6000 N/5cm |
STRENGTH |
WEFT |
4500 N/5cm |
WIDTH |
101.6cm |
|
121.9cm |
Also,it is famouse because its good proprietis,you can check it as belowing:
- Good dielectric proprietis
- Good chimical resistance exept for phosphoric and hydrofloric acid
- Toxicologically harmless
- No iching
- No organic components
- Content of free silicic acid
- Flexible
- REACH-conform
Application:
Steel industry, general high temperature areas, ideal protection against liquid metal splashes, glowing slag, open flames and flaying sparks.
