Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass

China Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass supplier
Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass supplier Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass supplier Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass supplier Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass supplier

Large Image :  Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430SG-D80-155

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: $4.85--$10.5
Packaging Details: 1 piece per bag, 25pcs per box
Delivery Time: 10--15 working days
Payment Terms: T/T, L/C, Western Union, O/A
Supply Ability: 300000 square meters per day
Contact Now
Detailed Product Description
Materials: Fibergalss Fabric + Silicone Coating + Needle Mat Yarn Type: E-Glass
Coating: 80/80g/m2 HS Code: 701940
Application: Thermal Insulation Covers ; Fireproof Jacket Service Temperature: 650°F

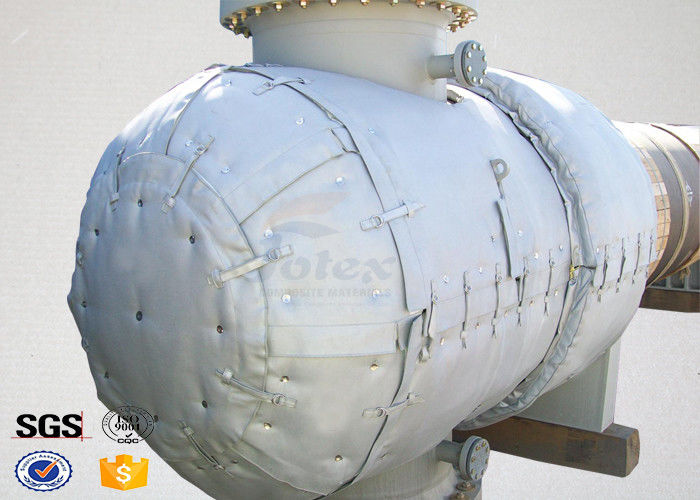

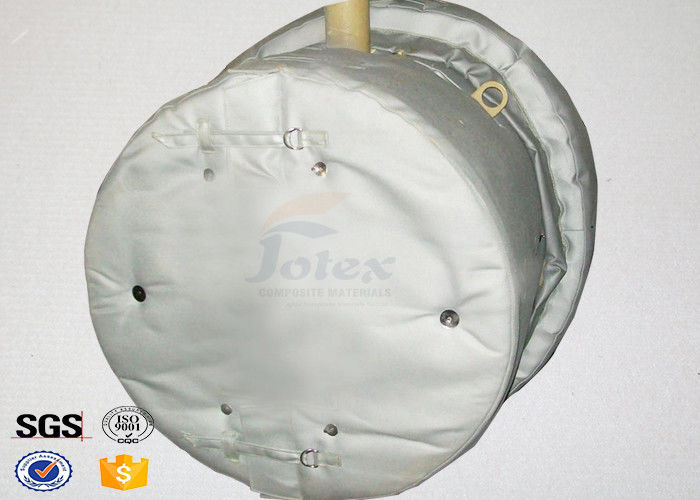

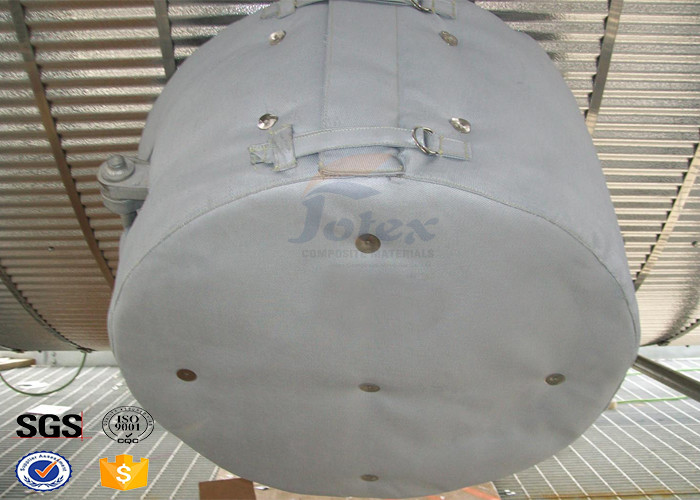

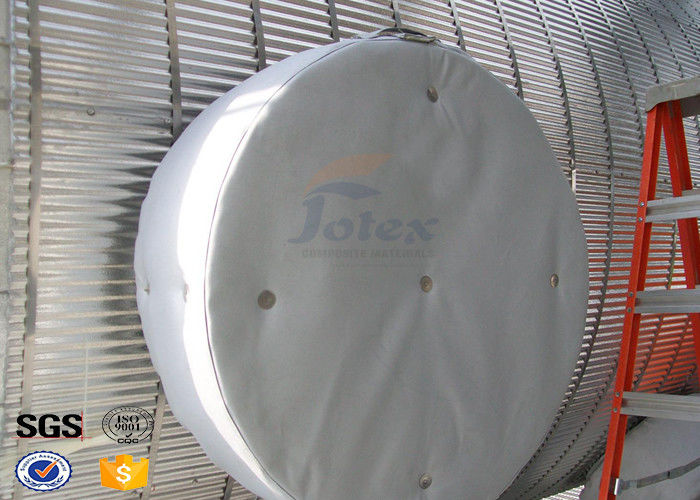

Fireproof Man Way Thermal Insulation Covers 0.4MM Silicone Coated Fiberglass



Silicone Coated fiberglass fabric is widely used in thermal insulation applications with coating or impregnated silicone.There are one side coating and 2 side coating.Of course,there are different weight of the coating for silicone.Such as the way insulation covers for closed vessels are custom-designed so that they’re easily removed – yet give a sure, snug fit when replaced.



But the man way insulation blankets, also called man way insulation covers, provide another important benefit : significant energy savings each year. And our durable, custom-engineered man way covers maintain a long-lasting, high-quality appearance.



Man Way Insulation Covers have three layers, liner is 20 oz silicone coated fiberglass fabric, and the protestion layer is ceramic fiber or e - glass fiber needle mat with high temperature resistance paint coat, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm, temperature resistance more than 1200 cent degree. Normal lifetime is 3 years. And the energy saving rate is 25% to 40%.





Total weight

590 g/m2(Total Weight)

Thickness

0.4 mm

Color

Grey

Fire resistance

Yes

Working temperature

-500C to +3600C

Coating

Silicone Coated On Both Sides.

Standard widths

1000mm, 1270mm, 1550mm, 3200mm(MAX)



Function for the Man Way Insulation Covers



Temperature

Operating at 0°F to 650°F

Jacket Fabric

20 oz Silicone Coated Fiberglass Fabric

Liner Fabric

20 oz Silicone Coated Fiberglass Fabric

Insulation

2″ Type E Glass Needle Mat

Fastening

2″ Nomex Velcro

Fastening

3/16″ Braided Kevlar Drawstrings

Fastening

12ga Stainless Steel Lace Hooks and Quilt Pins

Thread

Kevlar/Stainless Steel Thread







Silicone Coated fiberglass fabric has characters of fireproof, moisture-proof, anti-corrosion and light weight. The jacket made with silicone rubber coated fiberglass fabric is very convient and safety.It is widely used in industry fields an any other field.



Application for that :



Welding Blankets, Curtains and Pads


Diesel Engine Exhaust Covers


Fire-resistant doors


Furnace pads and separators


Furnace Insulation


Turbine Insulation


Thermocouple Insulation



Pls contact us and Unionfull can save your cost because the manufacture.And keep the quality, think more of you and your company.
