Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | JT8430TIJ-30-DN100 |
Minimum Order Quantity: | 50pcs |
Price: | $20--$45 one piece |
Packaging Details: | 10pcs in woven bag |
Delivery Time: | 2 weeks after receiving payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2800 PCS Per Day |
Minimize Heat Loss: | 25~40% | Moisture Absorption: | ≤5% |
---|---|---|---|
Protection Fabric: | Removable,reusable,flexible | Insulating: | E-needle Mat |
Thicknessresistant: | 30mm | Color: | Gray |
High Light: | Multilayer Thermal Insulation Jacket,E Needle Mat Thermal Insulation Jacket,TUV Gray Removable Insulation Blankets |
Industry Multi-layer Protection Thermal Flexible Insulation Jacket
Flexible insulation jacket have a wide range of commercial & Industrial use, such as energy consumption, heat protection and personnel protection. Each flexible insulation jacket is a customized removable cover. They can be used to insulate main fold and just about anything you can imagine.
These flexible insulation jacket have many built in features to assure a good fit and easy install. 2" wide Hook & Loop strips are applied at the laps to make sure the lap stays in place. Nomex Velcro with "D" rings are used to quickly close and secure the covers.
Stay-in-place insulation makes inspection more time-intensive, difficult, and costly. In addition, Unionfull can create custom insulation jacket for larger pipes, sharp angles and bends, or other non-standard piping. We also offer high-temperature insulation for higher temperature applications.
Description of Insulation Jacket:
Item | Construction | Temperature resistance | Thickness | Usage |
Low temperature insulation type | 1.Silicone coated fiberglass fabric 2.E-needle mat 3.Silicone coated fiberglass fabric | 260℃ | Customized |
Flange, Pipe, Valve
|
Standard type | 1.Aluminium foil fiberglass fabric 2.E-needle mat 3.Aluminium foil fiberglass fabric | 600℃ | Customized |
Flange, Pipe, Valve
|
High temperature insulation type | 1.High silica cloth 2.E-needle mat 3.High silica cloth | 1000℃ | Customized |
Flange, Pipe, Valve
|
Advantage:
Shorten installation time
Prevents heat loss and unnecessary emissions
Investment provides quick payback
Protects Employees & Equipment
Withstand Temperatures Up to 1000 degrees
Anti-corrosion
Increase workplace comfort
Application:
Pumps, Flange, chamber
Plastic vacuum forming machine
Exhaust pipe of engine
The barrels of injection machines

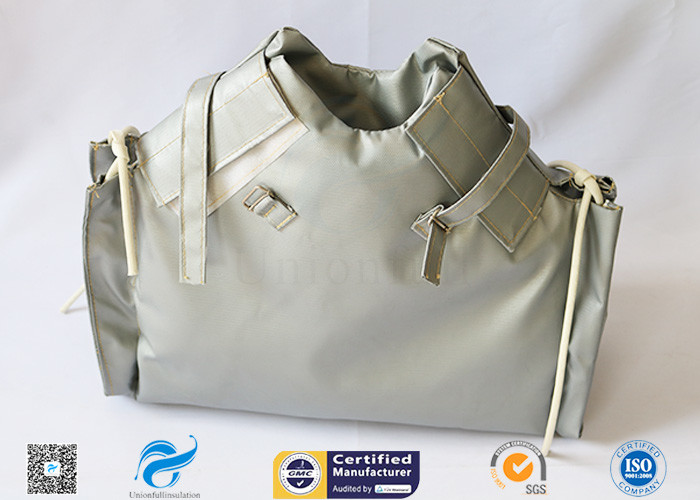

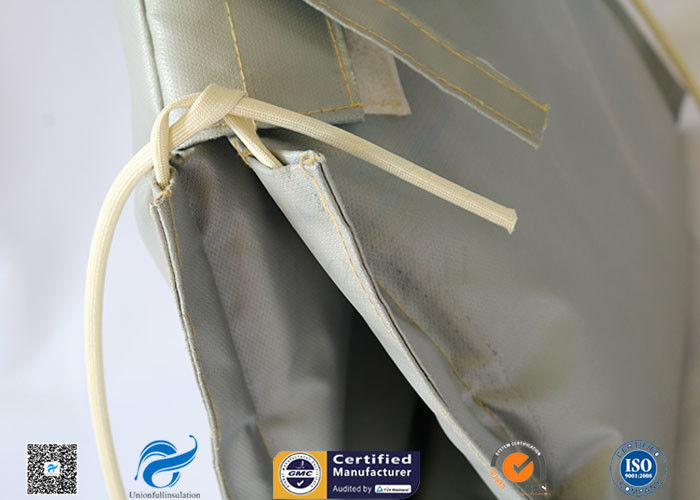

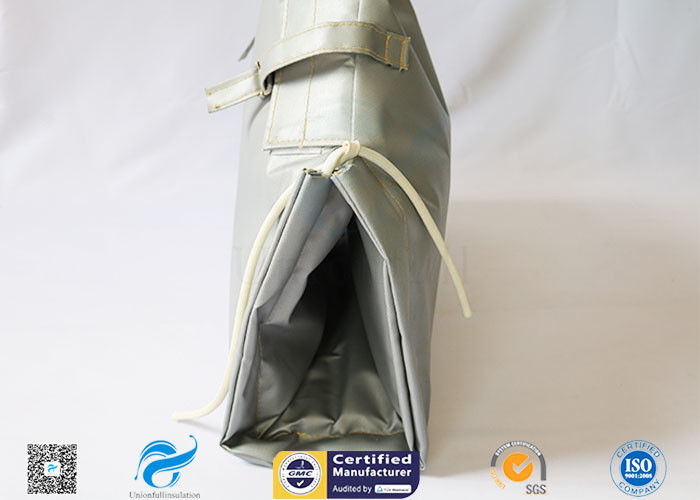

Pictures:
