Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | JT8430AR-D30-100 |
Minimum Order Quantity: | 200 Meters |
Price: | $1.8--$3.5/square meter |
Packaging Details: | One roll in poly bag, carton |
Delivery Time: | 3 weeks after payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 40,000 m2 per day |
Materials: | 3732 Fiberglass Cloth | Type: | E Glass |
---|---|---|---|
Weave Type: | Cross Twill | Are Weight: | 490g/m2 |
Width: | 1000mm | Heat Protection: | Fiberglass 550℃ |
High Light: | fire resistant blanket,fire protection blanket |

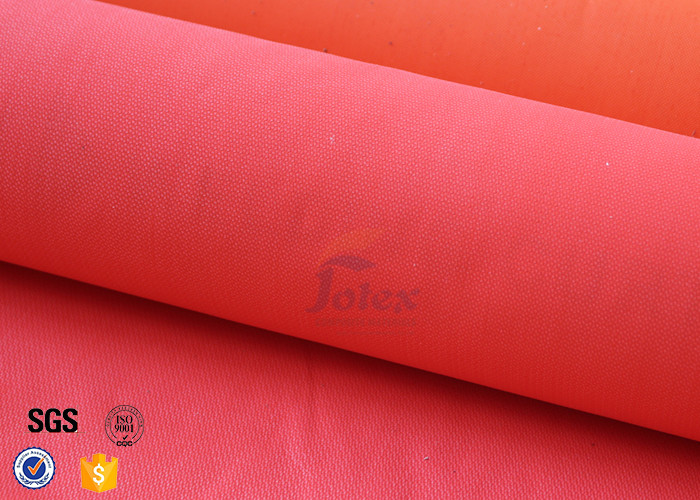

Fiberglass Fire Blanket Cloth With Acrylic Welding Safety Protection Red 550℃
High temperature fiber glass fabric will be coated with different compounds in order to meet special purpose and to improve its properties. Because of their different heat resistance ability and special features, these coated fiberglass cloth will be applied in a wide range of hot work environment and industrial applications.
Acrylic coated fiberglass fabric is a basic fabric coated with specially formulated red acrylic compound. Basic fire ressitant 100% fiber glass cloth (without asbestos) is woven with continuous filament e-glass fiber yarns in cross twill weave. It is weighed at 430gsm and coated on two sides (with 30gsm red color acrylic per side). Total weight is 490g/m2, about 14.5oz. Standard widths are 1000mm, 1270mm, 1550mm. Non combustible woven glass fiber fabric is ideal material for engineering heat insulation. Glass fiber cloth can withstand a heat below 550℃ continuously. Acrylic coating is able to withstand 260℃ day after day. It improves the abrasion resistance and chemical insulation of base glass cloth.
Except for industrial thermal insulation, welding fabrics are used in many industries fields. Application includes power generation insulation, chemical factory processing and oil & gas. It is able to protect people and equipment from sparks, molten metal splatter and hot works injury. Acrylic coated glass fabrics offer outstanding protection to high temp, abrasion, corrosion and tearing. This fabric is eco-friendly material without risk of toxic smoke during heating.
In addition to Acrylic coated cloth, Unionfull produces a wide range of high temp fireproof insulation material including silicone/PU/PVC coated fiberglass fabric, high silica fabric, aluminized glass fabrics, Vermiculite coated fiberglass fabric, etc,
Specification
Item | Acrylic Coated Fiberglass Fabric |
Total Weight | 490 g/m2 |
Thickness | 0.45 mm |
Coating | Red Acrylic |
Heat Temperature |
Coating: -50℃ to 260℃ Fiberglass: 550℃ |
Width | 100CM |
Features
Application
Pictures
